QUICK SERIES

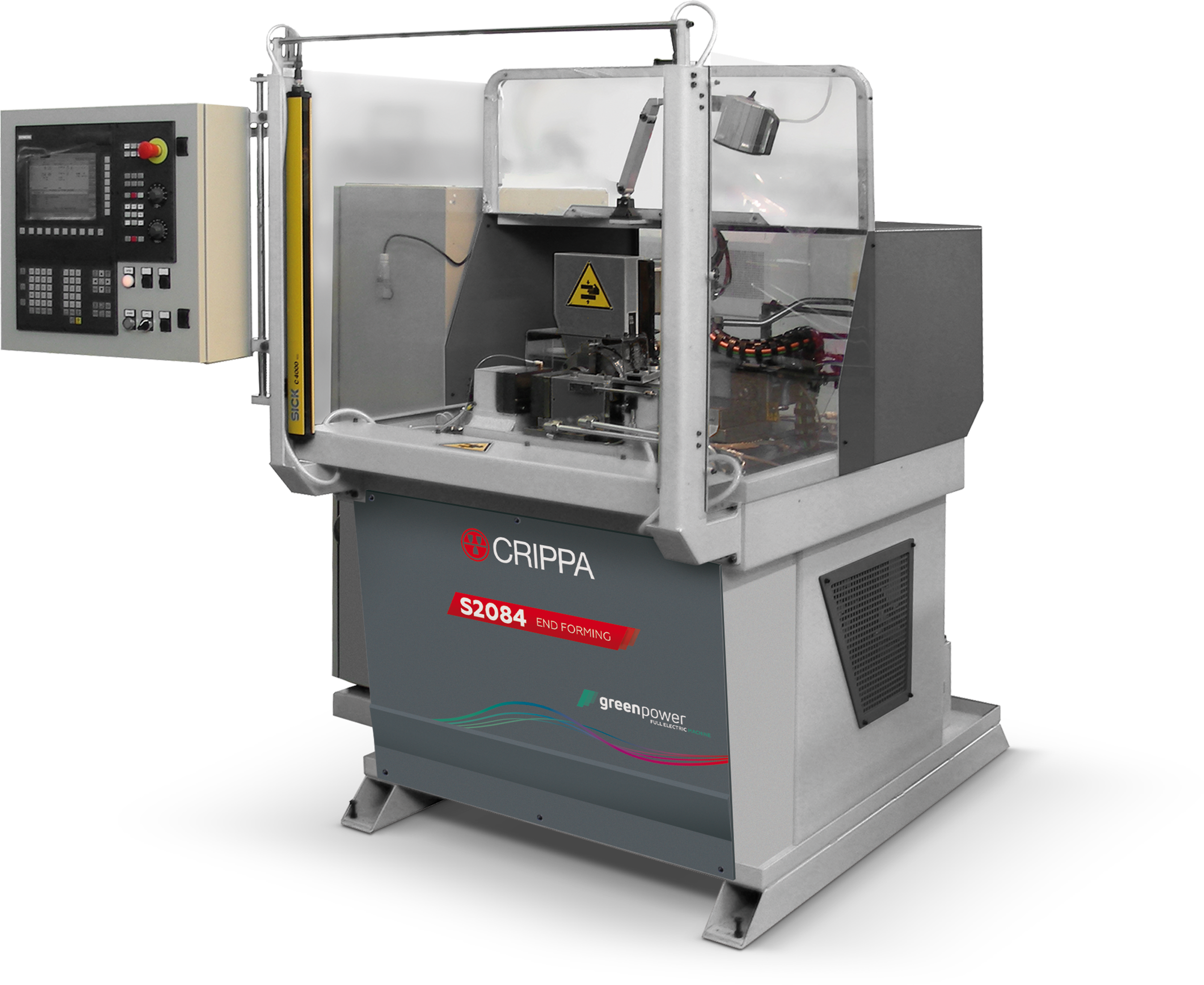

Endforming machines from the Quick series are machines having up to three axes that can make up to 6 steps to shape the tube. They have an endforming power of 8 tons in thrust and rotation, because they can integrate different rotating heads. This family of machines uses CNC Siemens 840D sl technology. The Quick series also includes a model that can integrate hydroforming processes and endforming in the cycle. The performance of this line allows very complex shaping processes on short and medium-long tubes.
Key features
Clamp Force
12
Clamp Length
42
Cnc Model
Siemens 840D Sl
Deformation Force
8
Dimensions L X W X H
1915X1462x1944
Forming Speed
8000
Max Deformation Length
250
Key features
Clamp Force
12
Clamp Length
55
Cnc Model
Siemens 840D Sl
Deformation Force
8-12
Dimensions L X W X H
2090X2290x2070
Forming Speed
8000
Max Deformation Length
250
Key features
Clamp Force
12
Clamp Length
42
Cnc Model
Siemens 840D Sl
Deformation Force
8-12
Dimensions L X W X H
2090X2290x2070
Forming Speed
8000
Max Deformation Length
250
